| Диаметр присоски |
10 , 16 , 25 , 32 , 40 , 50 , 63 , 80 , 100 |
|---|---|
| Материал присоски |
NBR (Nitrile Butadiene Rubber) , Silicone Rubber , Urethane Rubber , Фторполимер , Токопроводящий NBR , Conductive Silicone Rubber , FS61 (Fluoro-based rubber) |
| Характеристика монтажа |
Vacuum pad only , Vertical adapter , Lateral adapter , Lateral adapter with one-touch fitting , Buffer vertical entry , Buffer lateral entry , Buffer lateral entry with one-touch fitting |
| Complementary features |
Сильфонные , Нет , Plate mounting |
Глубокие
Don’t slip on your grip
- Prevent slippage of workpieces – High lateral holding force due to anti-slip ribs, up to 224 N
- Use it on a wide variety of workpiece types – Adaption to small radius of curvatures, as low as 14 mm
- Extend the life of your vacuum pad – FS61 (Fluoro-based rubber) provides excellent wear resistance
- Avoid malfunction of the installation – Insert-moulded pad to prevent disassembly of pad and adapter
И многое другое
- Pad sizes: From Ø 10 to Ø 100
- Available materials: NBR (Nitrile rubber) Silicone rubber Urethane rubber FKM (Fluoro rubber) Conductive NBR Conductive silicone rubber FS61 (Fluoro-based rubber)
- NBR (Nitrile rubber)
- Silicone rubber
- Urethane rubber
- FKM (Fluoro rubber)
- Conductive NBR
- Conductive silicone rubber
- FS61 (Fluoro-based rubber)
- Working temperature range: NBR: 0 to 120 ºC FS61 (Abrasion resistant): 0 to 200 ºC Silicone rubber: -30 to 200 ºC Urethane rubber: 0 to 60 ºC Fluoro rubber: 0 to 250 ºC Conductive rubber: 0 to 100 ºC Conductive silicone rubber: -10 to 200 ºC
- NBR: 0 to 120 ºC
- FS61 (Abrasion resistant): 0 to 200 ºC
- Silicone rubber: -30 to 200 ºC
- Urethane rubber: 0 to 60 ºC
- Fluoro rubber: 0 to 250 ºC
- Conductive rubber: 0 to 100 ºC
- Conductive silicone rubber: -10 to 200 ºC
Характеристики
Похожие товары

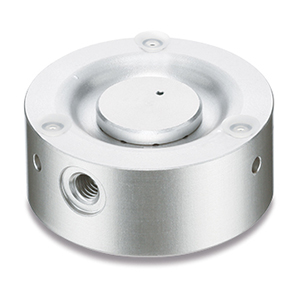

Non-contact vacuum pad
Бережная транспортировка
- Handle different sizes, materials & shapes gently – High lifting force, up to 65 N. Suitable for thin, porous, air-permeable workpieces, with holes, or sensitive to suction traces
- Reduce your costs – Important reduction on the ratio of air consumption to lift force
- Choose the gripper that matches your needs – 3 type of body materials for different situations
- Use it directly on food – FDA and EU1935-compliant rubber.
И многое другое
- Bernoulli type construction and working principle: Non contact gripper, mark-free Reduced amplitude of the workpiece during gripping Reduced rotation load.
- Non contact gripper, mark-free
- Reduced amplitude of the workpiece during gripping
- Reduced rotation load.
- Sizes Ø 20, Ø 30, Ø 40, Ø 60, Ø 80, Ø 100
- Body material: Aluminium Resin Stainless steel
- Aluminium
- Resin
- Stainless steel
Special application vacuum pad
Precision and versatility in handling
- Efficient disk transfer – Ideal for adsorbing and transferring disks of digital household appliances like CDs and DVDs with a bellows mechanism to dampen impact
- Secure panel fixation – Perfect for adsorbing and fixing panels or glass circuit boards, ensuring complete contact with curved surfaces
- Reliable performance – Ensures secure handling of delicate and varied workpieces across multiple industries.
И многое другое
- Available materials: Silicone rubber, Urethane rubber, Fluoro rubber, Conductive silicone rubber
- Working temperature range: Silicone rubber: -30 to 200 ºC Fluoro rubber: 0 to 250 ºC Conductive silicone rubber: -10 to 200 ºC
- Silicone rubber: -30 to 200 ºC
- Fluoro rubber: 0 to 250 ºC
- Conductive silicone rubber: -10 to 200 ºC

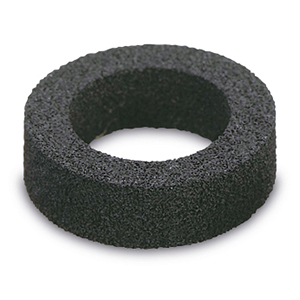

Из губчатого материала
Adaptable and Gentle Handling
- Perfect for uneven and porous surfaces – Ideal for workpieces with bumps, irregularities, and porosity
- Flexible integration – Available in various sizes and materials for diverse applications
- Reliable performance – Ensures secure handling of delicate items across multiple industries
И многое другое
- Pad sizes: From Ø 4 to Ø 15
- Available materials: Conductive EPDM
- Working temperature range: Conductive rubber: 0 to 100º
- Conductive rubber: 0 to 100º

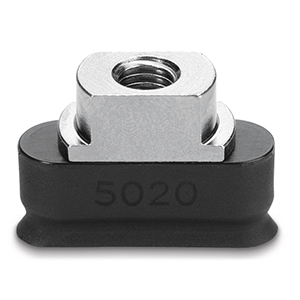

Овальные
Built for versatility
- Secure handling for various surfaces – Wide range of pad materials and shapes available
- Easy integration into any system – Multiple mounting options for diverse applications
- Versatile use across industries – Compatible with a variety of workpieces and conditions
- Extend the life of your vacuum pad – FS61 (Fluoro-based rubber) provides excellent wear resistance
И многое другое
- Pad sizes: From 2 x 4 to 50 x 100
- Available materials: NBR (Nitrile rubber) Silicone rubber Urethane rubber FKM (Fluoro rubber) Conductive NBR Conductive silicone rubber FS61 (Fluoro-based rubber)
- NBR (Nitrile rubber)
- Silicone rubber
- Urethane rubber
- FKM (Fluoro rubber)
- Conductive NBR
- Conductive silicone rubber
- FS61 (Fluoro-based rubber)
- Working temperature range: NBR: 0 to 120 ºC FS61 (Fluoro-based rubber): 0 to 200 ºC Silicone rubber: -30 to 200 ºC Urethane rubber: 0 to 60 ºC Fluoro rubber: 0 to 250 ºC Conductive rubber: 0 to 100 ºC Conductive silicone rubber: -10 to 200 ºC
- NBR: 0 to 120 ºC
- FS61 (Fluoro-based rubber): 0 to 200 ºC
- Silicone rubber: -30 to 200 ºC
- Urethane rubber: 0 to 60 ºC
- Fluoro rubber: 0 to 250 ºC
- Conductive rubber: 0 to 100 ºC
- Conductive silicone rubber: -10 to 200 ºC

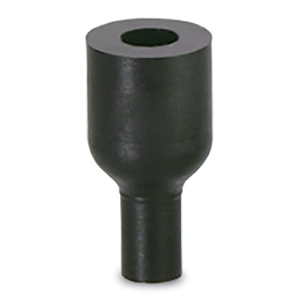

Сопло
Precision and Efficiency Redefined
- Accurate handling of small components – Ideal for delicate items like IC chips with precise suction capabilities
- Seamless system integration – Multiple adapter types and buffer options for easy installation
- Enhanced versatility – Suitable for various applications across different industries and workpieces
И многое другое
- Pad sizes: From Ø 0,8 to Ø 1,1
- Available materials: NBR (Nitrile rubber) Silicone rubber Urethane rubber FKM (Fluoro rubber) Conductive NBR Conductive silicone rubber
- NBR (Nitrile rubber)
- Silicone rubber
- Urethane rubber
- FKM (Fluoro rubber)
- Conductive NBR
- Conductive silicone rubber
- Working temperature range: NBR: 0 to 120 ºC Silicone rubber: -30 to 200 ºC Urethane rubber: 0 to 60 ºC Fluoro rubber: 0 to 250 ºC Conductive rubber: 0 to 100 ºC Conductive silicone rubber: -10 to 200 ºC
- NBR: 0 to 120 ºC
- Silicone rubber: -30 to 200 ºC
- Urethane rubber: 0 to 60 ºC
- Fluoro rubber: 0 to 250 ºC
- Conductive rubber: 0 to 100 ºC
- Conductive silicone rubber: -10 to 200 ºC
